AES HI 19
High-Power Heavy Duty All Rounder

Unmatched power in a compact chassis

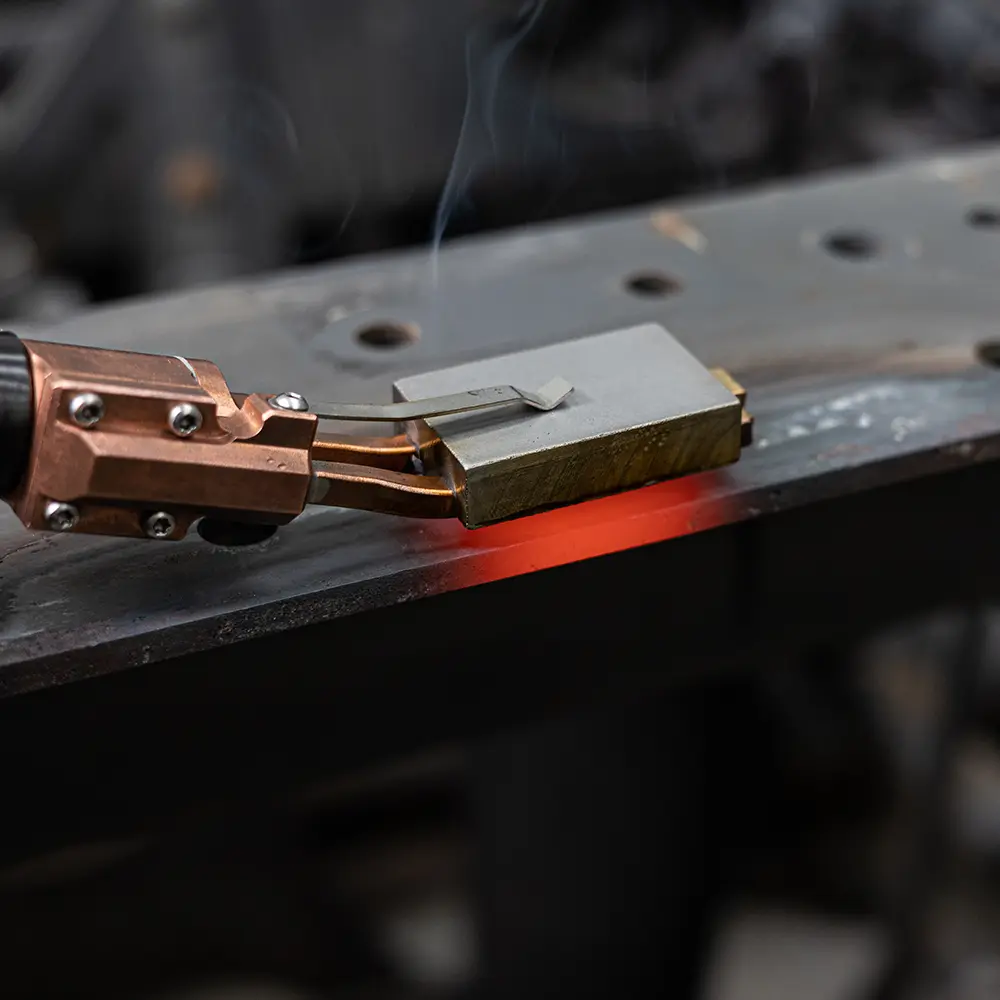

The AES HI 19 is a portable, small-footprint induction heater built for heavy-duty heating applications. Ideal for automotive, welding and industrial workshops, it delivers powerful, controlled, flame-free heat through a wide range of quick-change coils.
Liquid Cooled
6m Hose
40 min Cycle
400v Input
19 kW
96kg

Portable Power for Workshops

Small but powerful induction heater which can be moved around anywhere in the workshop.

Quick-change coils available for ultimate versatility, made for demanding workshops.

Over 30+ coils available, 6m hose package, lightweight compact chassis.
Compact power for any heating jobs
The AES HI 19 is a high-capacity (19kW) induction heater built for the most demanding industrial and commercial vehicle environments, delivery long duty cycles for prolonged heating jobs.
Controlled Heating
Variable heat settings for controlled and precise heat application

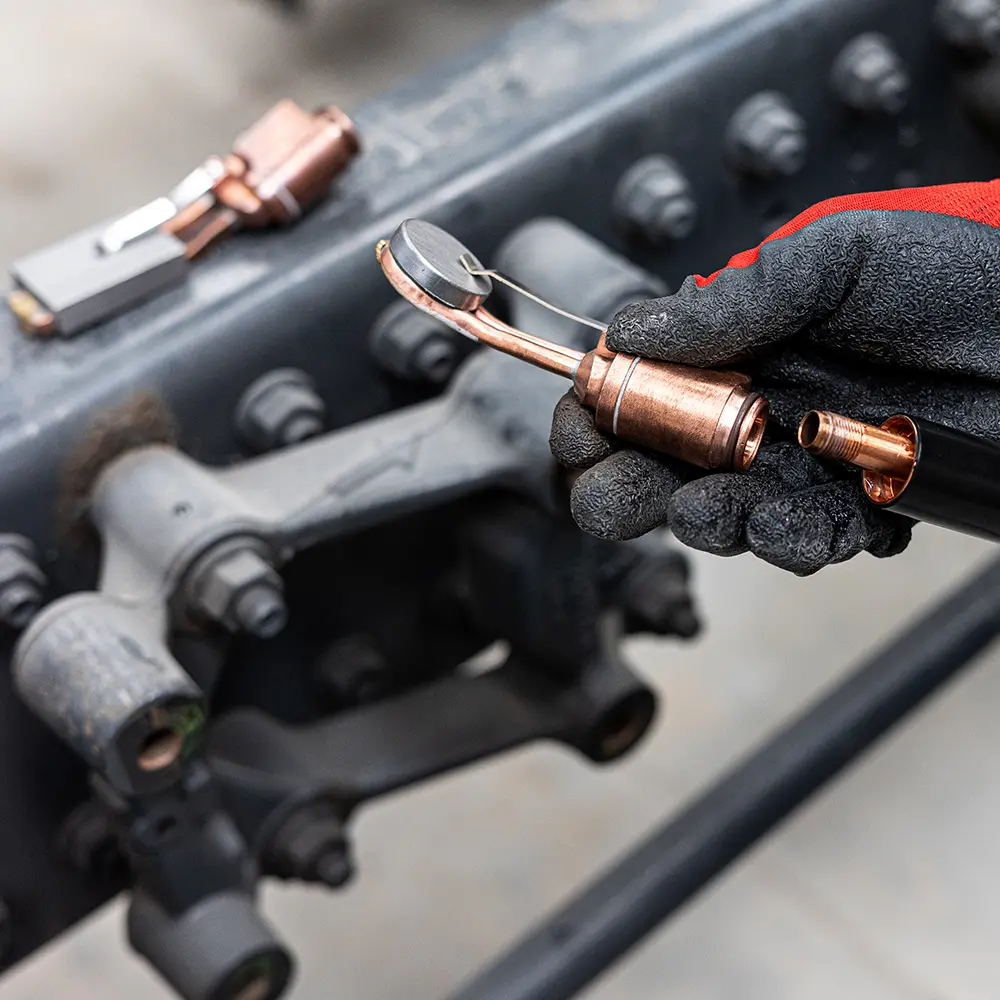

Interchangeable Tips
Over 35 quick-change tips available for any application
Compact & Portbale
Robust case equipped with heavy duty casters and handle

Applications
Product Information
AES HI 19
The AES HI 19 is a high-capacity induction heater built for the most demanding industrial and commercial vehicle environments, delivering 19 kW of power to tackle the heaviest structural heating, frame straightening and large-scale repair tasks. With a low-frequency induction output in the 18–35 kHz range, it provides fast, flame-free heat ideal for thick steel sections, chassis, large equipment assemblies and continuous production workflows.
Equipped with a robust water-cooled system, the HI 19 ensures consistent performance under heavy load, and supports an extensive range of flexible, interchangeable coils — including bespoke configurations for custom applications — allowing heating to be precisely targeted to compound shapes and large metal structures. Its mobile trolley design, industrial casters and intuitive digital control panel combine durability, mobility and ease of use in the workshop or manufacturing environment.
Designed for heavy-duty repair centres, HGV bus-chassis straightening, fabrication shops and industrial service plants, the AES HI 19 is the definitive solution when you need maximum heating power, ultimate flexibility and reliable performance without the risks of open-flame heating.
Brand
AES
SKU
DHI-191C HD
MPN
AES HI 19
Dimensions
540 x 850 x 960
mm
Weight
96
kg
Protection
IP21
Frequency
18-35
kHz
Mains supply:
400
Input Power
19
kW
Output Power
19
kW
Hose Length
6
m
Cooling
Liquid
Capacity
10
litres
Duty Cycle
40
minutes
