Crane Wheel Alignment Equipment & Systems
Designed for precision and efficiency, our crane wheel alignment systems deliver, accurate repeatable results.

Misaligned Cranes Are Costing You More Than Just Tyres.
Misalignment on cranes accelerate tyre wear, increases fuel use, critical factors for vehicles with high-value tyres and long wheelbases.
Incorrect axle alignment on a crane increases rolling resistance, raising fuel use by up to 2.5% on long transport runs.
Cranes use expensive, heavy-duty tyres — misalignment can reduce lifespan by 15% or more, significantly increasing operational costs.
Inefficient alignment methods can drive up external costs or reduce technician productivity.

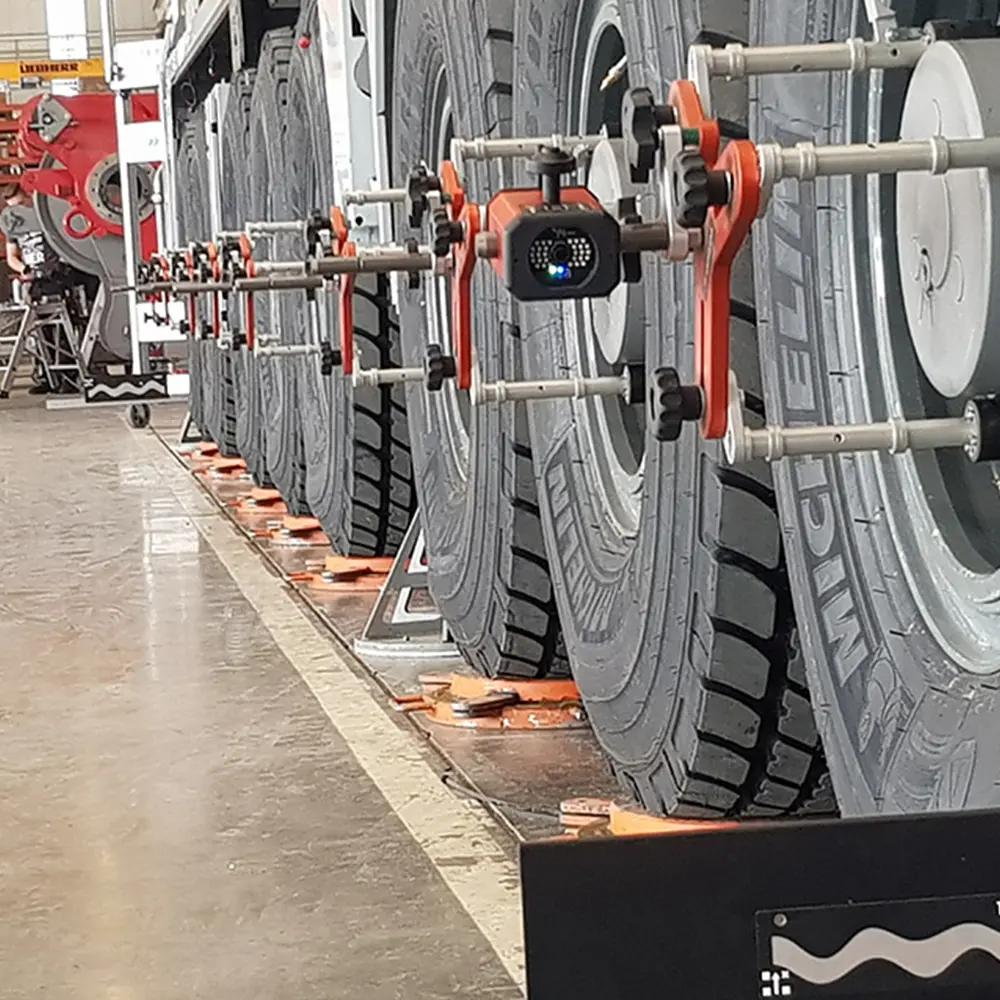

Crane Wheel Alignment
Crane wheel alignment systems are designed specifically for cranes and specialist multi-axle cranes in commercial workshop environments.
What is crane wheel alignment?
Measuring and correcting wheel and axle alignment on cranes.
Why is crane alignment important?
Improves tyre life, steering performance and operational safety.
What systems are used?
Laser, camera-based and drive-through systems.

Additional wheel clamps and turn plates for syncing axles.

Using the chassis as a centreline for all-axle alignment.

Software sequence for twinsteer measure and adjust.
3 Solutions for Crane Wheel Alignment
A solution for crane fleets, from small to large fleets. Click on a system below to learn more.

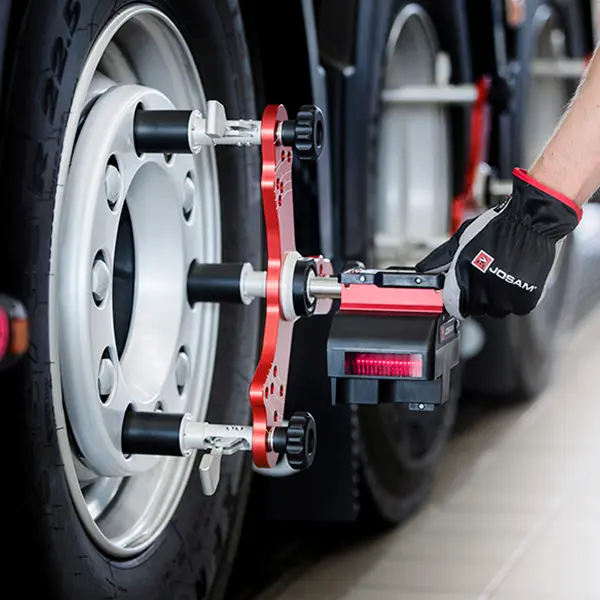

I-Track
I-Track for Cranes
The Josam I-Track is fast and highly accurate, measuring all axles in a single 180° roll — ideal for long-wheelbase and multi-steer mobile cranes.

Perfect Fit For
Professional, high volume workshops aiming to do 5+ alignments per week, and can accommodate a fixed bay/s for wheel alignment.

Workshop Configuration
The dedicated alignment bay, minimum 18.5m x 4.2m, uses fixed floor target scales so you only mount wheel adapters and measuring heads.

Homebase 4
The easy-to-use guided software makes measurements and adjustments simple, with built-in calibration and print-out functions.

Storage
The robust Josam trolley offers a safe, compact storage solution that can be easily moved around the workshop and includes a desk area for a laptop or tablet.

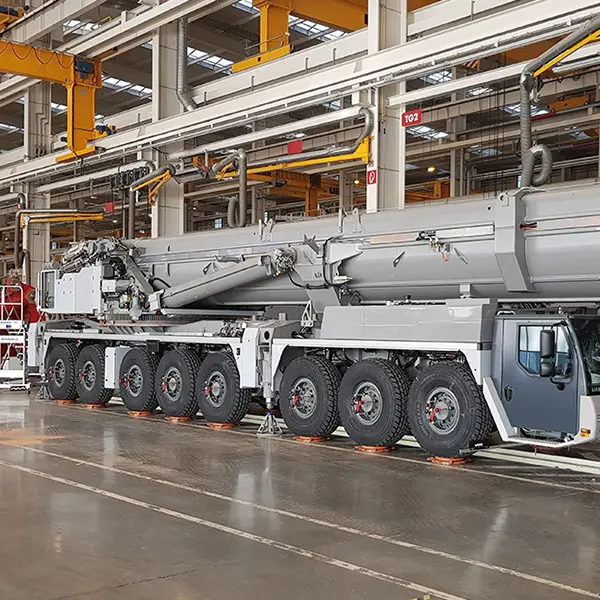

Cam-Aligner
Cam-Aligner for Cranes
The Josam Cam-Aligner delivers quick, precise digital measurements on multi-steer cranes, ensuring stable, repeatable results across complex steering axles.

Perfect Fit For
Professional workshops requiring flexibility to align any type of vehicle in any workbay quickly and accurately.

Homebase 4
The easy-to-use guided software makes measurements and adjustments simple, with built-in calibration and print-out functions.

Storage
The robust Josam trolley provides a safe, compact storage solution that can be moved around the workshop. And, desk area for a laptop or tablet.

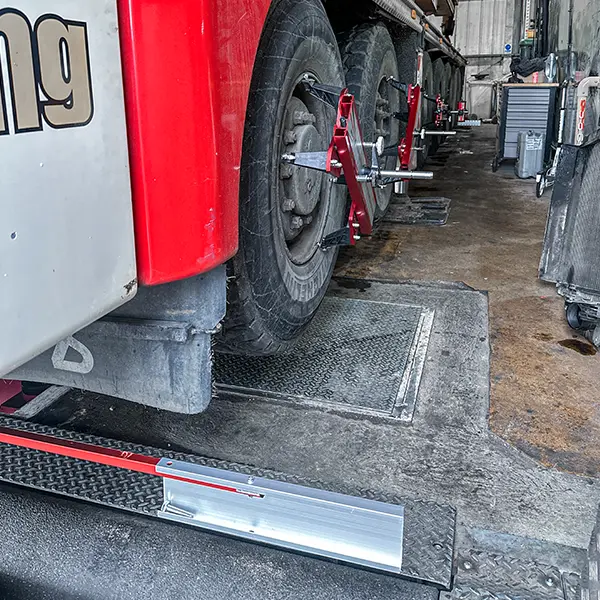

Laser AM
Laser AM for Cranes
The Josam Laser AM provides reliable, workshop-friendly alignment for mobile cranes, offering simple analogue measurements that work in any bay.

Perfect Fit For
Workshops looking for a cost-effective analogue system that’s accurate, flexible across vehicle types, and workbays.

Homebase 3
The easy to use software allows input of measurement and adjustments. And, provides you with print-out functionality.

Storage
The AES trolley provides a safe, compact storage solution that can be moved around the workshop. Wall panels also available.

Which Wheel Alignment system is right for you?
A quick summary of how Josam's crane wheel alignment systems compare.
Print-out
Digital
Speed
Self-calibrating
Investment
Live Adjustments
Mobile
Weekly Alignments
Want to see it first? Arrange a demo
How much could you save?
Get instant insight into your annual fuel and tyre savings potential with our calculator
Why Choose Josam?

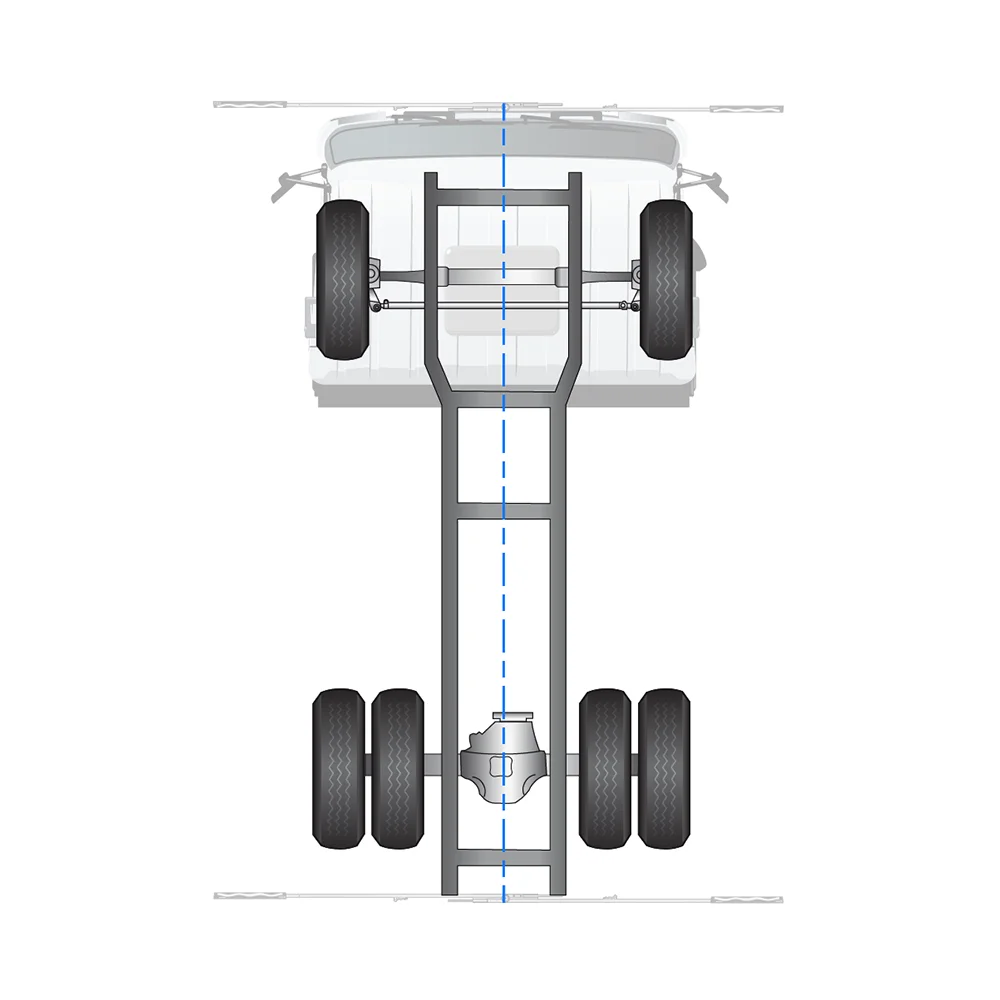

Josam equipment uses the centreline approach ensuring every axle is aligned accurately.

Each wheel is compensated for using rolling or jacking ensuring greater accuracy.

Josam technology holds multi-OEM approvals and is used on OEM production lines globally.

Solutions for all types of Crane
AES APPROACH

AES offer a free, on-site or training centre demonstration of all Josam alignment systems.

OEM certified wheel alignment install and training, covering measurement and adjustment.

Aftersales support including servicing, calibrations and remote Whatsapp/Facetime support.
Book a Demonstration
No obligation - quick turnaround. Alternatively, call us on 01904 460 581.

Still not sure? Request a callback
FAQS
Take a look at our FAQs below, if you can't find the answer you're looking for, please don't hesitate to get in touch with us. You can reach us by email at info@aesuk.com or give us a call at 01904 460 581.
Why is alignment important for cranes?
It protects expensive tyres, improves steering control and ensures safe road transport.
How often should cranes be aligned?
Every 6–12 months or after steering, suspension or tyre work.
Which alignment systems are best for cranes?
I-Track for speed, Cam-Aligner for digital precision and Laser AM for rugged daily use.
What are the benefits of regular crane alignment?
Better stability, longer tyre life and improved safety on the road.
How do I know if a crane is out of alignment?
Steering pull, uneven tyre wear and poor tracking are common signs.
Can you align all mobile crane types?
Yes, including 3-axle, 4-axle, 5-axle and all-terrain cranes.
Do you provide training for crane alignment?
Absolutely, we train technicians specifically on multi-steer crane alignment.
Is crane alignment profitable for workshops?
Yes, it is a specialist service with strong revenue potential, largely due to the cost and number of tyres.
What are the financial benefits of crane alignment?
Reduced tyre wear, lower fuel use and improved stability all reduce running costs.
Can I get a demo of the kit before I buy it?
Yes, we offer a free onsite demonstration a time that is convenient for you. Alternatively you can visit our purpose built training centre.
Do you offer spares and service support for alignment systems?
Yes, we stock all Josam alignment spares in the UK and offer fast delivery for parts like targets, sensors, clamps, and calibration equipment. We also provide annual servicing, system calibration, and technical support for all Josam alignment kits, including legacy equipment.
Commercial Wheel Alignment Hub
From product innovations to expert industry guides, our HUB keeps you informed on the latest commercial wheel alignment trends.
Crane Wheel Alignment Systems
Crane Wheel Alignment Systems – Precision for Multi-Axle Mobile Cranes
AES supplies advanced wheel alignment systems designed for mobile cranes, heavy-lift vehicles and multi-steer chassis. Cranes depend on precise alignment to maintain stability, protect high-value tyres and ensure safe travel between sites. Our systems deliver fast, accurate results tailored to long wheelbases and complex steering geometries.
Whether you operate 3-axle city cranes or large 5–6 axle all-terrain cranes, our alignment solutions help reduce running costs, increase tyre life and improve vehicle handling on the road and on construction sites.
Our Crane Alignment Systems
Laser AM – Rugged and Flexible
Works effectively on long-wheelbase cranes and heavy-duty steer axles using simple, durable laser technology.
Cam-Aligner – Digital Measurement for Large Cranes
Captures precise data on multi-steer axles and long chassis, ideal for professional crane workshops.
i-Track – Drive-Through Accuracy for Specialist Fleets
Provides fast, consistent measurements on cranes with minimal setup — perfect for operators managing multiple large units.
Full Aftersales Support
- Calibration and accuracy verification
- On-site repairs and servicing
- Training for crane steering and multi-axle alignment
- Spare parts and accessories
- Custom workflow support for heavy-lift and crane operators
AES helps crane operators keep their vehicles safe, stable and efficient while reducing the cost of tyre replacement and fuel spend.
