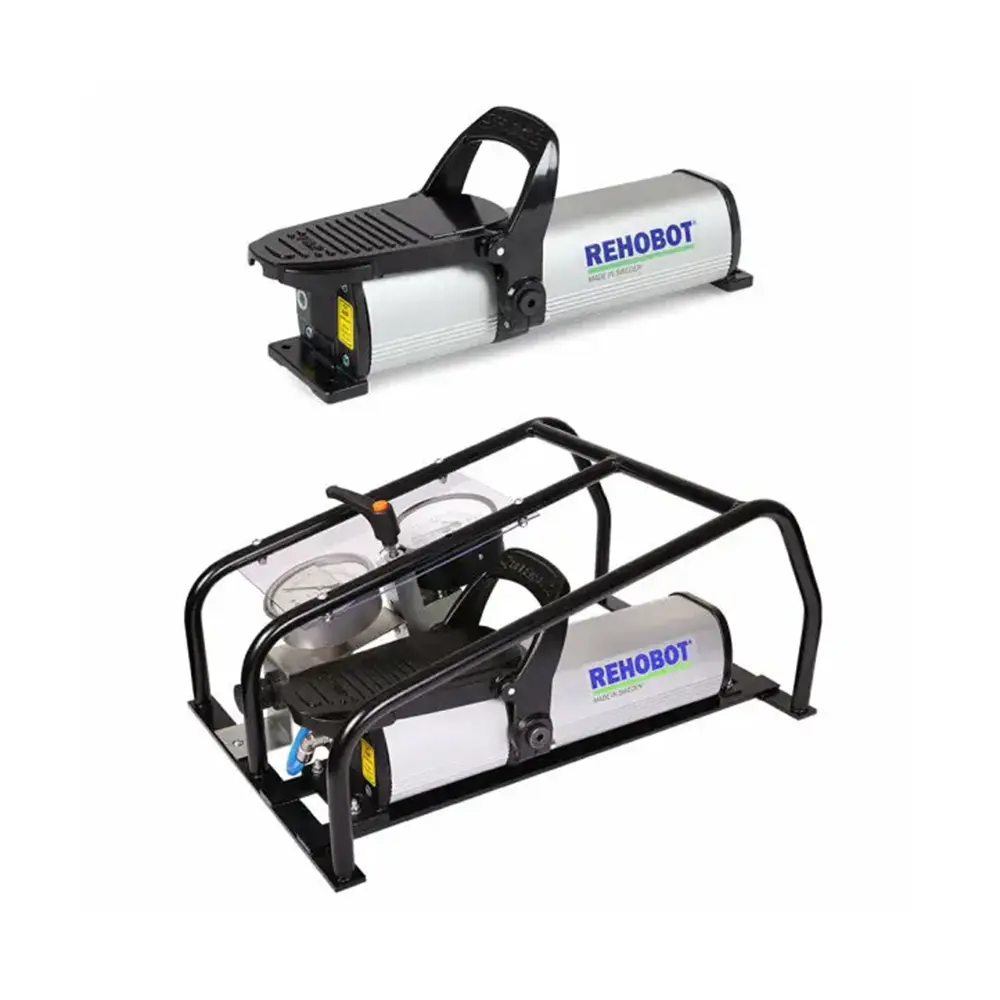

Rehobot Air-operated Hydraulic Foot Pumps PP 1000 Series

The Rehobot PPxx-1000 compact air-operated hydraulic pumps are designed for maximum flexibility, allowing operation in both horizontal and vertical positions.
Easy to manoeuvre by hand or foot, these pumps deliver a high oil flow rate and are simple to maintain, with straightforward oil level checking and top-up. Reliable and easy to service, pumps with the suffixes /LS201, /LS250, /LS301 and /LSS203 are supplied as complete kits with hose and fittings, ready for immediate use. For PP70/80/100-1000 models, the use of an AMT801 pressure gauge with AVM204 gauge bracket is recommended, although alternative gauge configurations are available.
Product Information
Brand
Rehobot
Category
Hydraulic Pumps
SKU
PP-X-1000
MPN
PP-X-1000
Dimensions
mm
Weight
kg
Capacity
ton
Min Height
mm
Max Height
mm
Stroke
mm
PP70B-1000
Item no: 49300
Working pressure: 70 MPa
Eff. oil vol: 1000 cm³
Air pressure: 6–10 bar
Weight: 5.9 kg
PP70B-1000 / LS201
Item no: 49306
Working pressure: 70 MPa
Eff. oil vol: 1000 cm³
Air pressure: 6–10 bar
Weight: 7.0 kg
Hose: 2 m
PP70B-1000 / LS250
Item no: 49307
Working pressure: 70 MPa
Eff. oil vol: 1000 cm³
Air pressure: 6–10 bar
Weight: 7.0 kg
Hose: 2.5 m
PP80B-1000
Item no: 49301
Working pressure: 80 MPa
Eff. oil vol: 1000 cm³
Air pressure: 6–10 bar
Weight: 5.9 kg
PP100B-1000
Item no: 49302
Working pressure: 100 MPa
Eff. oil vol: 1000 cm³
Air pressure: 6–10 bar
Weight: 5.9 kg
PP100B-1000 / LSS203
Item no: 51616
Working pressure: 100 MPa
Eff. oil vol: 1000 cm³
Air pressure: 6–10 bar
Weight: 7.0 kg
PP150-1000
Item no: 47685
Working pressure: 150 MPa
Eff. oil vol: 1000 cm³
Air pressure: 6–10 bar
Weight: 5.9 kg
PP150-1000CAG
Item no: 50572
Working pressure: 150 MPa
Eff. oil vol: 1000 cm³
Air pressure: 6–10 bar
Weight: 11.8 kg
PP150-1000 / LSS203
Item no: 51617
Working pressure: 150 MPa
Eff. oil vol: 1000 cm³
Air pressure: 6–10 bar
Weight: 7.0 kg
PP227-1000
Item no: 51050
Working pressure: 227.5 MPa
Eff. oil vol: 1000 cm³
Air pressure: 6.5–10 bar
Weight: 6.2 kg
PP227-1000CAG
Item no: 51130
Working pressure: 227.5 MPa
Eff. oil vol: 1000 cm³
Air pressure: 6.5–10 bar
Weight: 12.1 kg
PP227-1000 / LS204
Item no: 51618
Working pressure: 227.5 MPa
Eff. oil vol: 1000 cm³
Air pressure: 6.5–10 bar
Weight: 8.4 kg
Hose: LS204 (not swivelling)
Pressure gauge
For PP70/80/100-1000 air-operated hydraulic pumps, the AMT801 pressure gauge is recommended together with the AVM204 pressure gauge bracket. Other combinations of pressure gauge and brackets are possible.
