Rehobot Two-stage Hydraulic Hand Pump PHS Series

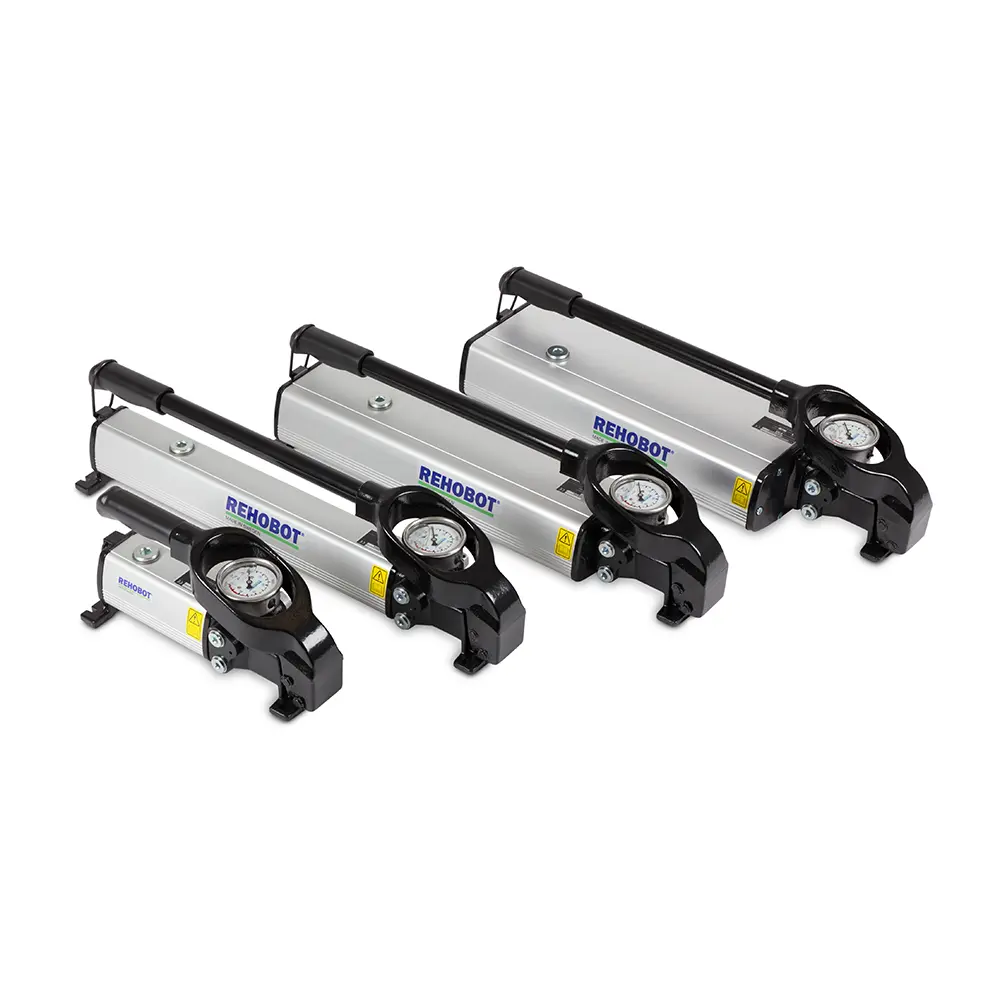

Rehobot PHS series are two-stage hydraulic hand pumps supplied with a pressure gauge as standard, giving the operator precise, safe control throughout operation.

Each pump features a hydraulic return connection, a lightweight yet robust aluminium oil tank with easy filling, and a relief valve for accurate pressure control. Mounting holes allow fixed installation, and a pump lever locking system simplifies transport. LS201, LS250 and LS301 models are supplied as complete kits with hose and fittings, ready for immediate use.

Hand operated hydraulic pump

Reliable, precise power for demanding tasks

Get a Quote

Fill out the form to get a quote within 48 hours. Alternatively, call us on 01904 460 581 or email us at info@aesuk.com

Thank you! Your submission has been received!

Oops! Something went wrong while submitting the form.

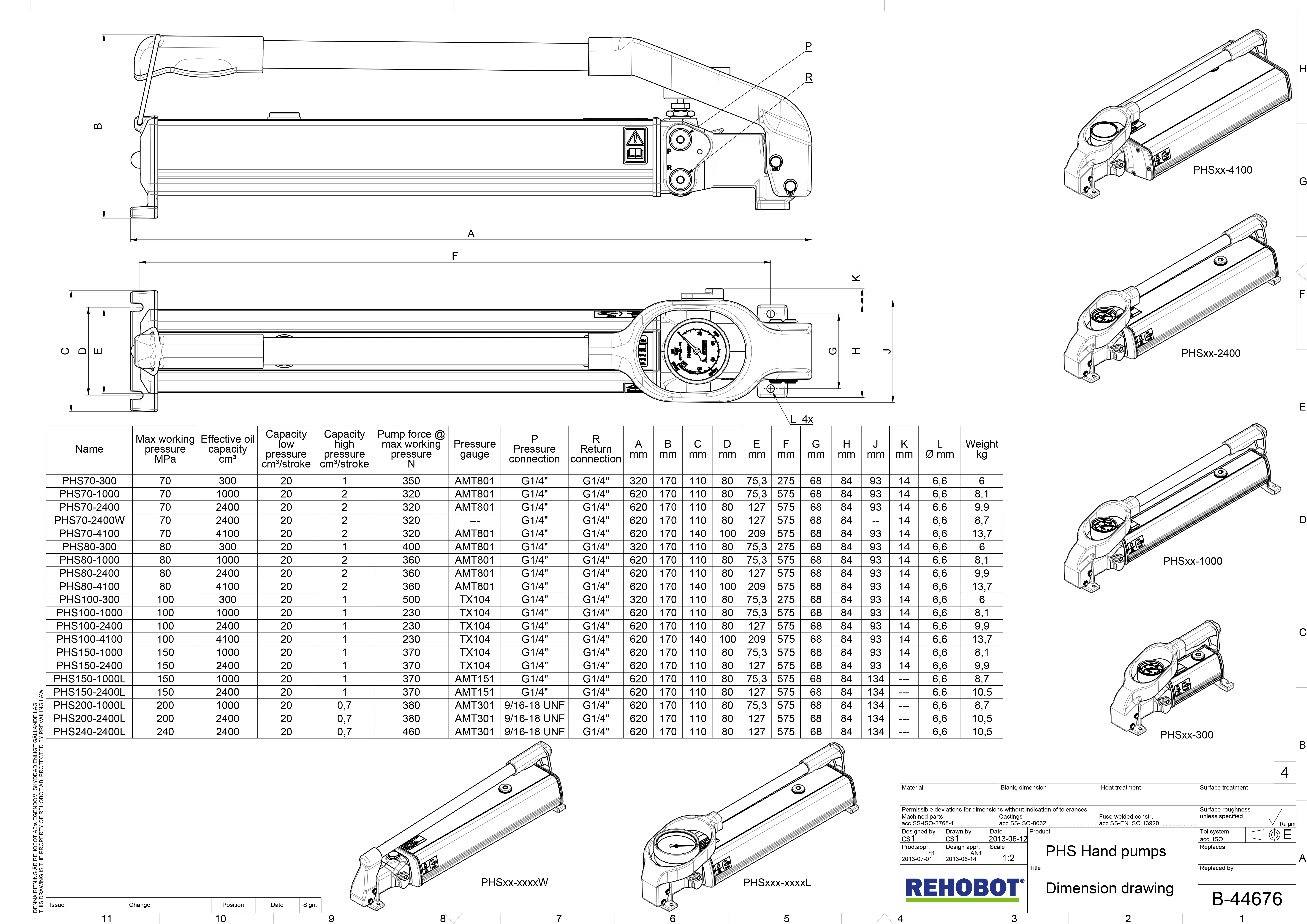

Product Information

PHS70-300

Item no: 44411
Working pressure: 70 MPa
Eff. oil vol: 300 cm³
Pumping force: 350 N
Weight: 6.0 kg

PHS70-300W

Item no: 44880
Working pressure: 70 MPa
Eff. oil vol: 300 cm³
Pumping force: 350 N
Weight: 4.8 kg

PHS70-300 / LS201

Item no: 44418
Working pressure: 70 MPa
Eff. oil vol: 300 cm³
Pumping force: 350 N
Weight: 7.4 kg
Hose: 2 m

PHS70-1000

Item no: 44400
Working pressure: 70 MPa
Eff. oil vol: 1000 cm³
Pumping force: 320 N
Weight: 8.1 kg

PHS70-1000W

Item no: 44882
Working pressure: 70 MPa
Eff. oil vol: 1000 cm³
Pumping force: 320 N
Weight: 6.9 kg

PHS70-1000 / LS201

Item no: 44414
Working pressure: 70 MPa
Eff. oil vol: 1000 cm³
Pumping force: 320 N
Weight: 9.5 kg
Hose: 2 m

PHS70-1000 / LS250

Item no: 44419
Working pressure: 70 MPa
Eff. oil vol: 1000 cm³
Pumping force: 320 N
Weight: 9.5 kg
Hose: 2.5 m (Highflex)

PHS70-1000 / LS301

Item no: 44417
Working pressure: 70 MPa
Eff. oil vol: 1000 cm³
Pumping force: 320 N
Weight: 9.7 kg
Hose: 3 m

PHS70-2400

Item no: 44405
Working pressure: 70 MPa
Eff. oil vol: 2400 cm³
Pumping force: 320 N
Weight: 9.9 kg

PHS70-2400W

Item no: 44886
Working pressure: 70 MPa
Eff. oil vol: 2400 cm³
Pumping force: 320 N
Weight: 8.7 kg

PHS70-2400 / LS201

Item no: 44413
Working pressure: 70 MPa
Eff. oil vol: 2400 cm³
Pumping force: 320 N
Weight: 11.4 kg
Hose: 2 m

PHS70-4100

Item no: 50605
Working pressure: 70 MPa
Eff. oil vol: 4100 cm³
Pumping force: 320 N
Weight: 13.7 kg

PHS70-4100W

Item no: 51654
Working pressure: 70 MPa
Eff. oil vol: 4100 cm³
Pumping force: 320 N
Weight: 13.6 kg

PHS80-300

Item no: 44412
Working pressure: 80 MPa
Eff. oil vol: 300 cm³
Pumping force: 400 N
Weight: 6.0 kg

PHS80-300W

Item no: 44881
Working pressure: 80 MPa
Eff. oil vol: 300 cm³
Pumping force: 400 N
Weight: 4.8 kg

PHS80-1000

Item no: 44401
Working pressure: 80 MPa
Eff. oil vol: 1000 cm³
Pumping force: 360 N
Weight: 8.1 kg

PHS80-1000W

Item no: 44883
Working pressure: 80 MPa
Eff. oil vol: 1000 cm³
Pumping force: 360 N
Weight: 6.9 kg

PHS80-2400

Item no: 44406
Working pressure: 80 MPa
Eff. oil vol: 2400 cm³
Pumping force: 360 N
Weight: 9.9 kg

PHS80-2400W

Item no: 44887
Working pressure: 80 MPa
Eff. oil vol: 2400 cm³
Pumping force: 360 N
Weight: 8.7 kg

PHS80-4100

Item no: 50606
Working pressure: 80 MPa
Eff. oil vol: 4100 cm³
Pumping force: 360 N
Weight: 13.7 kg

PHS100-1000

Item no: 44402
Working pressure: 100 MPa
Eff. oil vol: 1000 cm³
Pumping force: 230 N
Weight: 8.1 kg

PHS100-1000W

Item no: 44884
Working pressure: 100 MPa
Eff. oil vol: 1000 cm³
Pumping force: 230 N
Weight: 6.9 kg

PHS100-1000L

Item no: 44898
Working pressure: 100 MPa
Eff. oil vol: 1000 cm³
Pumping force: 230 N
Weight: 8.7 kg

PHS100-2400

Item no: 44407
Working pressure: 100 MPa
Eff. oil vol: 2400 cm³
Pumping force: 230 N
Weight: 9.9 kg

PHS100-2400W

Item no: 44888
Working pressure: 100 MPa
Eff. oil vol: 2400 cm³
Pumping force: 230 N
Weight: 8.7 kg

PHS100-4100

Item no: 50619
Working pressure: 100 MPa
Eff. oil vol: 4100 cm³
Pumping force: 230 N
Weight: 13.7 kg

PHS150-300

Item no: 52220
Working pressure: 150 MPa
Eff. oil vol: 300 cm³
Pumping force: 420 N
Weight: 6.0 kg

PHS150-1000

Item no: 44403
Working pressure: 150 MPa
Eff. oil vol: 1000 cm³
Pumping force: 370 N
Weight: 8.1 kg

PHS150-1000W

Item no: 44885
Working pressure: 150 MPa
Eff. oil vol: 1000 cm³
Pumping force: 370 N
Weight: 6.9 kg

PHS150-1000L

Item no: 44899
Working pressure: 150 MPa
Eff. oil vol: 1000 cm³
Pumping force: 370 N
Weight: 8.7 kg

PHS150-1000 / LSS203

Item no: 51613
Working pressure: 150 MPa
Eff. oil vol: 1000 cm³
Pumping force: 370 N
Weight: 9.5 kg

PHS150-2400

Item no: 44408
Working pressure: 150 MPa
Eff. oil vol: 2400 cm³
Pumping force: 370 N
Weight: 9.9 kg

PHS150-2400W

Item no: 44889
Working pressure: 150 MPa
Eff. oil vol: 2400 cm³
Pumping force: 370 N
Weight: 8.7 kg

PHS150-2400L

Item no: 44903
Working pressure: 150 MPa
Eff. oil vol: 2400 cm³
Pumping force: 370 N
Weight: 10.5 kg

PHS150-2400 / LSS203

Item no: 51614
Working pressure: 150 MPa
Eff. oil vol: 2400 cm³
Pumping force: 370 N
Weight: 11.4 kg

PHS150-4100

Item no: 51243
Working pressure: 150 MPa
Eff. oil vol: 4100 cm³
Pumping force: 370 N
Weight: 13.7 kg

PHS200-1000L*

Item no: 44914
Working pressure: 200 MPa
Eff. oil vol: 1000 cm³
Pumping force: 380 N
Weight: 8.7 kg

PHS200-2400L*

Item no: 44911
Working pressure: 200 MPa
Eff. oil vol: 2400 cm³
Pumping force: 380 N
Weight: 10.5 kg

PHS240-2400L*

Item no: 44910
Working pressure: 240 MPa
Eff. oil vol: 2400 cm³
Pumping force: 460 N
Weight: 10.5 kg

PHS240-2400L / LS204ER*

Item no: 51138
Working pressure: 240 MPa
Eff. oil vol: 2400 cm³
Pumping force: 460 N
Weight: 12.5 kg

PHS240-4100L*

Item no: 51490
Working pressure: 240 MPa
Eff. oil vol: 4100 cm³
Pumping force: 460 N
Weight: 14.1 kg

PHS280-2400L*

Item no: 44912
Working pressure: 280 MPa
Eff. oil vol: 2400 cm³
Pumping force: 540 N
Weight: 10.5 kg

PHS280-2400L / LS205*

Item no: 51615
Working pressure: 280 MPa
Eff. oil vol: 2400 cm³
Pumping force: 540 N
Weight: 12.1 kg

PHS300-1000L*

Item no: 51440
Working pressure: 300 MPa
Eff. oil vol: 1000 cm³
Pumping force: 425 N
Weight: 8.7 kg

PHS300-2400L*

Item no: 52332
Working pressure: 300 MPa
Eff. oil vol: 2400 cm³
Pumping force: 425 N
Weight: 10.5 kg

Pressure gauges

For PHS70-xxxx and PHS80-xxxx series hydraulic hand pumps, use pressure gauge 50777, Ø60 mm display.
For hydraulic hand pumps of the PHS100-xxxx and PHS150-xxxx series, use pressure gauge TX104, Ø60 mm display.
Pumps ending in W are delivered with a straight lever without pressure gauge.
REHOBOT also offers pressure gauges with a larger display of Ø100 mm for pumps with pressures of 150 MPa and above.
For pumps of the PHS150-xxxxL series, the AMT151 pressure gauge, Ø100 mm display is used.
For PHS240-xxxxL and PHS280-xxxxL series pumps, use pressure gauge AMT301, Ø100 mm display.
For pumps in the PHS300-xxxxL series, pressure gauge AMT401, Ø100 mm display is used.
REHOBOT also offers hydraulic hand pumps in the PHS series without pressure gauge.
